AZDOME JYX05 3-Lead Hardwire Kit | Type-C | 24H Parking Mode & Battery Protection
Product Description
Unlock 24/7 Security for Your Vehicle
Standard dash cam cables only work when your engine is running. The AZDOME JYX05 3-Lead Hardwire Kit connects your camera directly to the fuse box, providing continuous power even after you park. This allows your dash cam to utilize its 24-Hour Parking Monitor feature, capturing hit-and-runs or vandalism while you are away from your vehicle.
Smart Battery Guard Technology
Never worry about a dead battery. The JYX05 is engineered with an intelligent Low Voltage Protection system. It constantly monitors your car’s battery levels and will automatically cut power to the dash cam if the voltage drops too low, ensuring you always have enough power to start your engine.
-
4 Adjustable Voltage Cut-offs: Choose between 11.8V, 12.0V, 12.2V, or 12.4V (for 12V batteries) to suit your vehicle's health.
-
Universal 12V/24V Compatibility: Whether you drive a compact car or a heavy-duty truck, the JYX05 automatically detects the voltage input.
-
Type-C Connectivity: Designed specifically for modern high-end dash cams including the M550 Pro, M660, and PG17 series.
3. Technical Specifications
| Feature | Specification |
| Output Connector | Type-C USB (Right Angled) |
| Input Voltage | DC 12V - 24V |
| Output Voltage | 5V / 2.5A |
| Cable Length | 12 Feet (3.5 Meters) |
| Lead Wires | 3-Wire (ACC, Battery+, Ground) |
| Safety Features | Short Circuit, Overload, & Over-temperature Protection |
4. Installation & Compatibility
The JYX05 includes 4 types of Fuse Taps to ensure a match for almost any vehicle: Micro2, Mini, LP-Mini, and ATO.

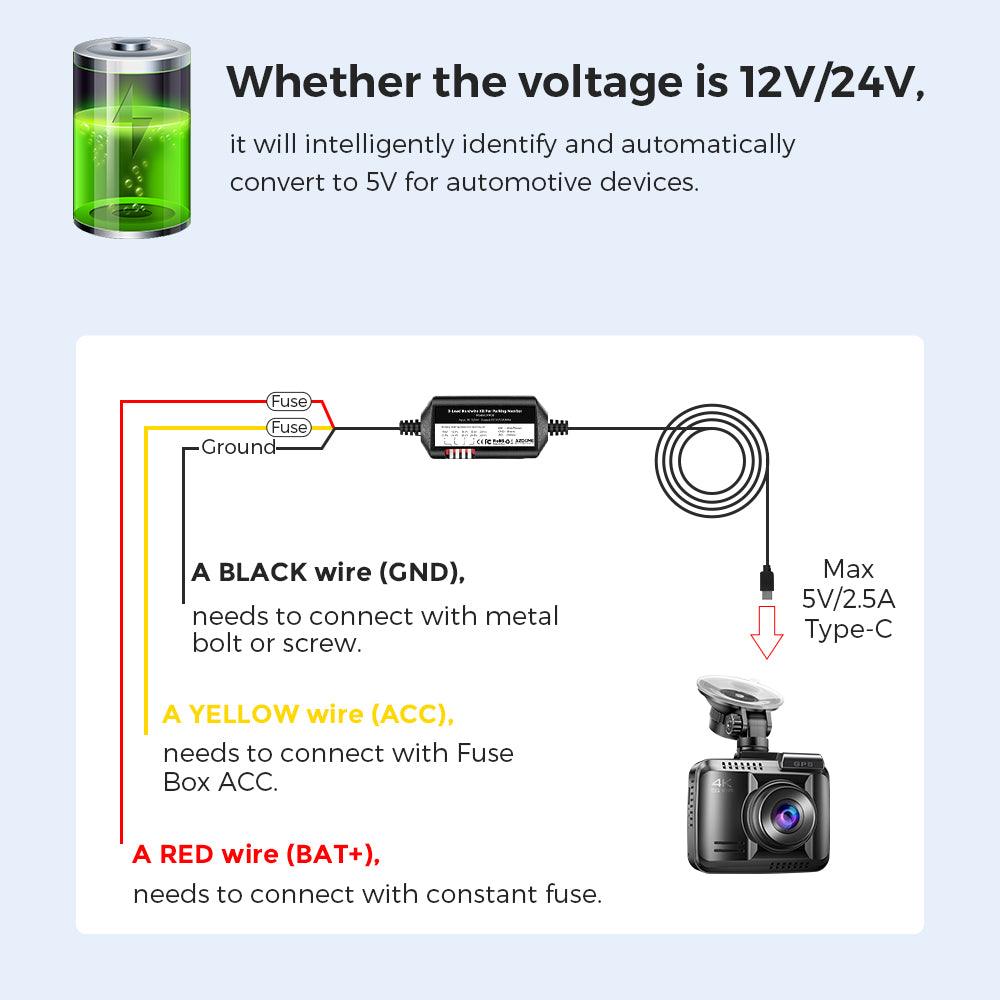

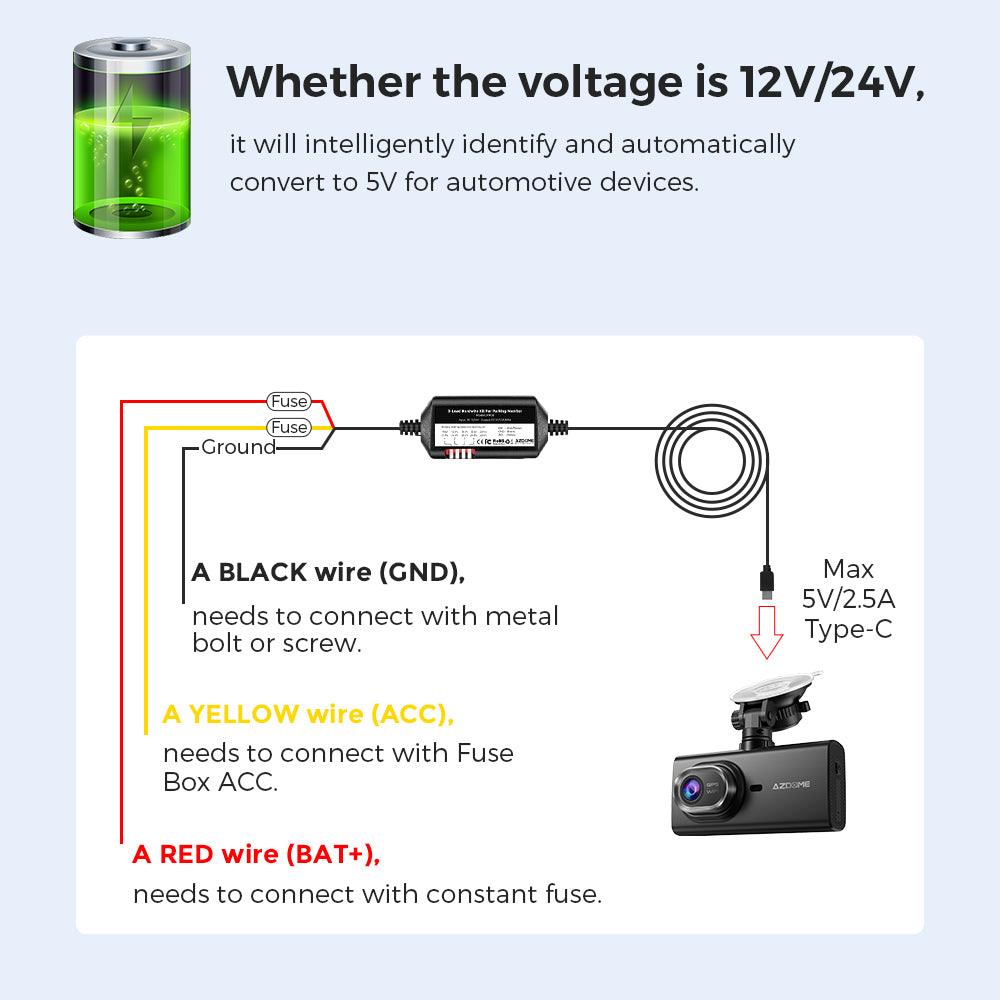

Wire Configuration:
-
RED (BAT+): Connects to a constant fuse (Always on).
-
YELLOW (ACC): Connects to an ignition-switched fuse (On only when car is running).
-
BLACK (GND): Connects to a metal ground bolt.
⚠️ Compatibility Note: While universal, this kit is NOT compatible with specific Ford truck models (F150/F350 2021+, Edge 2011, Explorer 2013). Please check your owner's manual for specific fuse types.
5. Why You Need This Kit
If you own an AZDOME M300S, M550, or PG17, your camera relies on a Super Capacitor for heat safety, which contains no internal battery. To use Parking Mode, this hardwire kit is mandatory. It provides the 5V/2.5A stable current required for multi-channel recording while your car is off.
Frequently Asked Questions
1. Does this dash cam work with iPhone and Android?
Yes, all AZDOME dash cams with WiFi connect easily to both iOS and Android devices via the app. You can view, download, and share videos instantly.
2. Do I need WiFi or internet to use the dash cam?
No. The dash cam records automatically without internet. WiFi is only needed if you want to connect your phone to view or download footage.
3. Does it record when the car is parked?
Yes, with parking mode enabled, the dash cam can monitor your car 24/7. It detects motion or impacts and records automatically.
Note: A hardwire kit may be required for continuous parking monitoring.
4. How long can the dash cam record?
Recording time depends on the memory card size. For example:
-
64GB = several hours of footage
-
128GB–256GB = extended recording time
Loop recording ensures old footage is automatically overwritten when storage is full.
5. Is a memory card included?
Some models include a memory card (e.g., 64GB or 128GB). Please check the product details. For best performance, we recommend using a high-speed microSD card.
6. Will it record at night?
Yes, AZDOME dash cams feature advanced night vision and HDR/WDR technology to capture clear footage even in low-light conditions.
7. Is installation difficult?
No, installation is simple and takes just a few minutes. Most dash cams mount to your windshield or rearview mirror and plug into your car’s power outlet.
8. What happens if there is an accident?
The built-in G-sensor automatically detects sudden impacts and locks the video to prevent it from being overwritten—ensuring important evidence is محفوظ.
9. Can I view footage on the dash cam screen?
Yes, models with a screen allow real-time viewing and playback directly on the device. You can also access videos via the mobile app.
10. Does it support voice control?
Yes, selected models support voice commands like:
-
“Lock Video”
-
“Take Photo”
-
“Turn on WiFi”
This allows hands-free control while driving.
11. What vehicles is this compatible with?
AZDOME dash cams are compatible with most vehicles including cars, SUVs, trucks, taxis, and rideshare vehicles.
12. Is there a warranty?
Yes, AZDOME products typically come with a warranty and customer support. Please check your product page for full warranty details.
