AZDOME M550 Pro 2-Channel 4K Dash Cam with GPS & 5G WiFi
Product Overview
The AZDOME M550 Pro is a dual-channel vehicle surveillance system designed for simultaneous front-facing and passenger-cabin monitoring. Equipped with a primary 4K Ultra HD front lens and a secondary 1080P Full HD cabin camera featuring integrated infrared night vision, this hardware system establishes a continuous, secure record of both the road ahead and the interior vehicle cabin for personal, commercial, and rideshare applications.
Technical Specifications
| Feature | Technical Specification Details |
| System Configuration | 2-Channel (Front Exterior + Interior Cabin) |
| Video Resolution | Front: 4K UHD (3840×2160P) | Cabin: 1080P FHD (1920×1080P) |
| Optical Sensors | Sony STARVIS image sensor (Cabin) with 6-layer glass lenses |
| Night Vision Sensor | 6 Integrated 940nm Infrared (IR) LEDs (Cabin lens) |
| Wireless Connectivity | Dual-Band 5GHz / 2.4GHz WiFi (AZDOME App compatible) |
| Telemetry & Navigation | Integrated GPS module (Logs speed, coordinates, and route) |
| Display Panel | 3.19-inch IPS Widescreen Display |
| Power Architecture | Heat-resistant Supercapacitor power supply |
| Storage Capabilities | Supports up to 256GB MicroSD (Includes 64GB High-Speed Card) |
| Recording Modes | Seamless Loop Recording & G-Sensor Impact detection |
Core Features & Hardware Analysis
Dual-Channel 4K Front & 1080P Cabin Surveillance
The M550 Pro utilizes a dual-camera layout to record internal and external perspectives simultaneously. The front-facing lens captures footage in true 4K Ultra HD (3840x2160P) to ensure legibility of distant license plates and road signs. The integrated cabin lens records in 1080P Full HD, providing continuous interior cabin tracking.
6-LED Infrared (IR) Night Vision
The passenger-cabin camera is built with a Sony STARVIS sensor and 6 hidden 940nm Infrared (IR) LEDs. When ambient cabin light drops below operating thresholds, the system automatically transitions to infrared mode, recording clear grayscale video of the vehicle interior in complete darkness without emitting a distracting visible red glow.
Dual-Band 5GHz/2.4GHz WiFi & GPS Telemetry

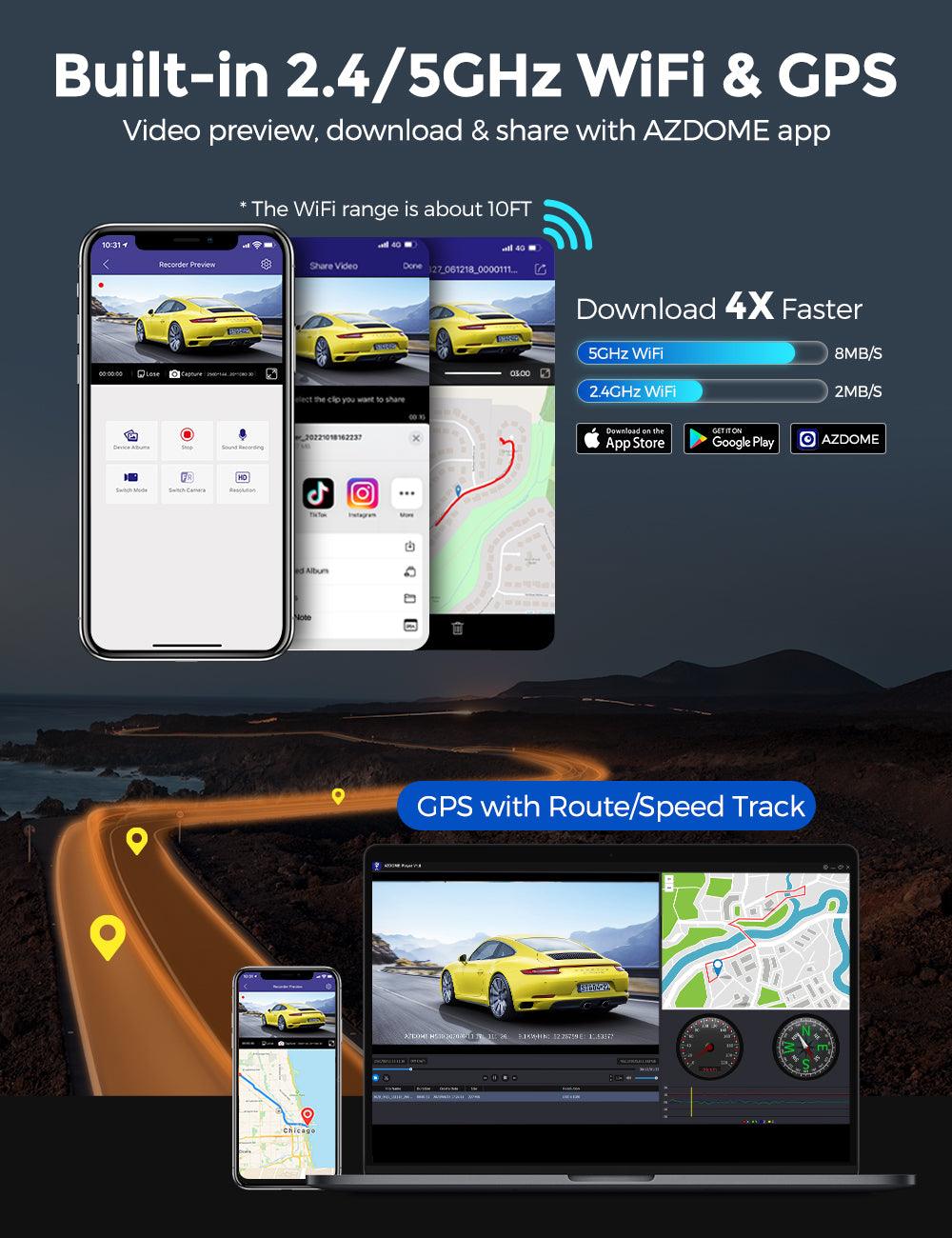

Equipped with an upgraded 5GHz WiFi module, the M550 Pro supports wireless data transfer rates significantly faster than standard 2.4GHz legacy bands. This enables rapid video download and configuration management via the AZDOME companion app. The integrated GPS logger automatically stamps real-time vehicle speed, geographical coordinates, and travel history directly into the video metadata.
Supercapacitor Thermal Architecture
Instead of traditional, temperature-sensitive lithium-ion batteries, the M550 Pro utilizes a high-durability supercapacitor power design. This structure ensures safe hardware operation across extreme seasonal temperature variations ranging from -4°F to 158°F (-20°C to 70°C), eliminating risks of battery swelling, leakage, or thermal degradation under constant sunlight.
Advanced Security & Parking Features
-
24-Hour Parking Surveillance: When paired with the optional 3-wire Type-C hardwire kit (sold separately), the M550 Pro supports continuous monitoring while the vehicle is parked. It offers Time-Lapse Mode (recording at 1 frame per second to maximize card storage) and Auto-Impact Detection (triggering automatic event recording upon G-sensor physical impact detection).
-
Seamless Loop Recording: Once the MicroSD card reaches its storage capacity limit, the processor automatically overwrites the oldest, unprotected video files, maintaining continuous, uninterrupted recording cycles.
-
Built-in G-Sensor: Detects sudden deceleration or physical collisions, automatically locking the current active recording segment to prevent it from being overwritten during loop cycles.
Target Applications
-
Rideshare & TNC Operations (Uber, Lyft, Taxi): The 1080P infrared cabin lens provides continuous, unlit cabin monitoring to ensure driver safety and liability protection.
-
Daily Commuters & Families: Documents front-end road incidents and cabin events in high resolution to facilitate swift insurance claim resolution.
-
Commercial Fleet Management: Records driver cabin behavior alongside external telemetry and high-speed GPS routing data to improve driver safety scores.
Frequently Asked Questions
Q1: Does the AZDOME M550 Pro record the front and cabin channels simultaneously?
A: Yes. The AZDOME M550 Pro is a dual-channel hardware system designed to capture the road ahead in 4K UHD resolution and the interior cabin in 1080P FHD resolution at the exact same time.
Q2: Can the M550 Pro operate in hot and cold weather environments safely?
A: Yes. The M550 Pro utilizes a supercapacitor power system instead of a chemical lithium-ion battery. This design allows the dash cam to safely operate in extreme weather conditions ranging from -4°F to 158°F (-20°C to 70°C) without risk of battery failure or overheating.
Q3: What accessories are included in the standard AZDOME M550 Pro package?
A: The standard retail package includes the AZDOME M550 Pro dual-channel dash cam, a high-speed 64GB MicroSD card, a dual-port USB car charger, a Type-C power cable, a magnetic GPS mounting bracket, and installation accessories.
Frequently Asked Questions
1. Does this dash cam work with iPhone and Android?
Yes, all AZDOME dash cams with WiFi connect easily to both iOS and Android devices via the app. You can view, download, and share videos instantly.
2. Do I need WiFi or internet to use the dash cam?
No. The dash cam records automatically without internet. WiFi is only needed if you want to connect your phone to view or download footage.
3. Does it record when the car is parked?
Yes, with parking mode enabled, the dash cam can monitor your car 24/7. It detects motion or impacts and records automatically.
Note: A hardwire kit may be required for continuous parking monitoring.
4. How long can the dash cam record?
Recording time depends on the memory card size. For example:
-
64GB = several hours of footage
-
128GB–256GB = extended recording time
Loop recording ensures old footage is automatically overwritten when storage is full.
5. Is a memory card included?
Some models include a memory card (e.g., 64GB or 128GB). Please check the product details. For best performance, we recommend using a high-speed microSD card.
6. Will it record at night?
Yes, AZDOME dash cams feature advanced night vision and HDR/WDR technology to capture clear footage even in low-light conditions.
7. Is installation difficult?
No, installation is simple and takes just a few minutes. Most dash cams mount to your windshield or rearview mirror and plug into your car’s power outlet.
8. What happens if there is an accident?
The built-in G-sensor automatically detects sudden impacts and locks the video to prevent it from being overwritten—ensuring important evidence is محفوظ.
9. Can I view footage on the dash cam screen?
Yes, models with a screen allow real-time viewing and playback directly on the device. You can also access videos via the mobile app.
10. Does it support voice control?
Yes, selected models support voice commands like:
-
“Lock Video”
-
“Take Photo”
-
“Turn on WiFi”
This allows hands-free control while driving.
11. What vehicles is this compatible with?
AZDOME dash cams are compatible with most vehicles including cars, SUVs, trucks, taxis, and rideshare vehicles.
12. Is there a warranty?
Yes, AZDOME products typically come with a warranty and customer support. Please check your product page for full warranty details.
