AZDOME M01 Pro 3K Dash Cam with Dual-Channel Recording & WiFi
Product Overview
The AZDOME M01 Pro is an upgraded dual-lens vehicle surveillance system designed to provide continuous front and rear video logging. Configured with a primary front-facing camera capable of capturing up to 3K Ultra HD video in single-channel mode, or 2K Front + 1080P Rear video in dual-channel mode, this hardware system establishes a legally viable, time-stamped record of road incidents, tailgating events, and front-end collisions.
Technical Specifications
| Feature | Technical Specification Details |
| System Configuration | Dual-Channel (Front Exterior + Rear Exterior) |
| Resolution (Single-Channel) | Front: 3K Ultra HD (3200×1800P) |
| Resolution (Dual-Channel) | Front: 2K HD | Rear: 1080P Full HD |
| Optical Lens Profile | 150° Wide-Angle Field of View (FOV) with F1.8 Aperture |
| Display Panel | 3.0-inch 2.5D IPS Widescreen Screen |
| Wireless Connectivity | Built-in WiFi (AZDOME Companion App Integration) |
| Exposure Control | Wide Dynamic Range (WDR) Technology |
| Power Architecture | Heat-Resistant Supercapacitor Power Supply |
| Storage Compatibility | Supports up to 128GB MicroSD (64GB High-Endurance Card Included) |
| Rear Camera Rating | IP68 Dustproof & Waterproof |
Core Features & Hardware Analysis

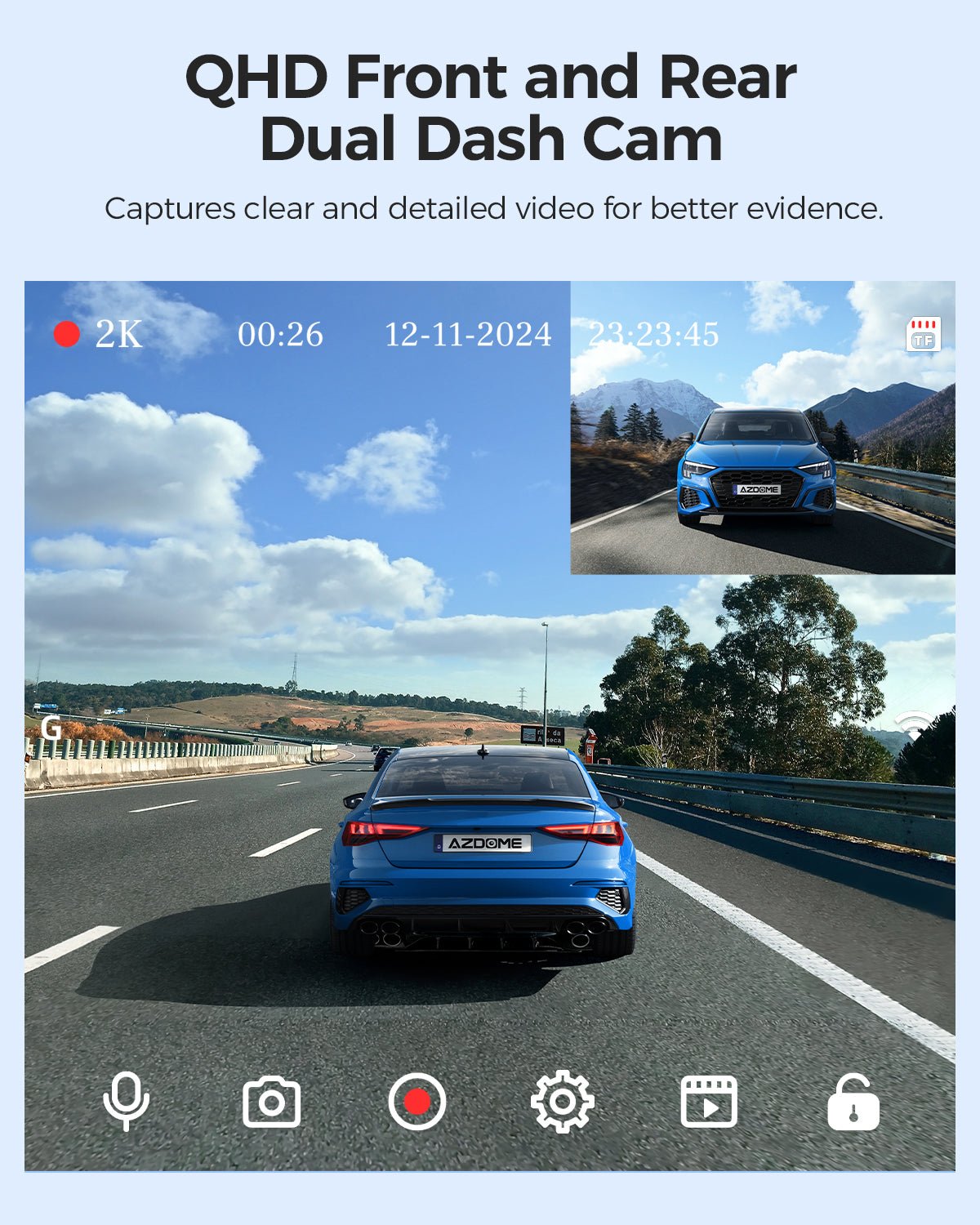

High-Resolution Multi-Channel Video Capture
The processing core of the M01 Pro supports variable-resolution profiles depending on your camera setup. In single-channel operation, the front lens records in 3K Ultra HD (3200×1800P) to capture distant license plates and street signage. In dual-channel configuration, the system records in 2K HD on the front lens and 1080P Full HD on the IP68-rated rear camera to deliver comprehensive dual-view coverage of the vehicle's driving path.
Super Night Vision with F1.8 Aperture & WDR
Equipped with a large F1.8 physical aperture and Wide Dynamic Range (WDR) exposure balancing, the M01 Pro optimizes light sensitivity. This design automatically balances dark shadow areas and bright light zones (such as highway headlights or overhead tunnel lighting), maintaining video legibility and reducing image noise during low-light and night driving conditions.

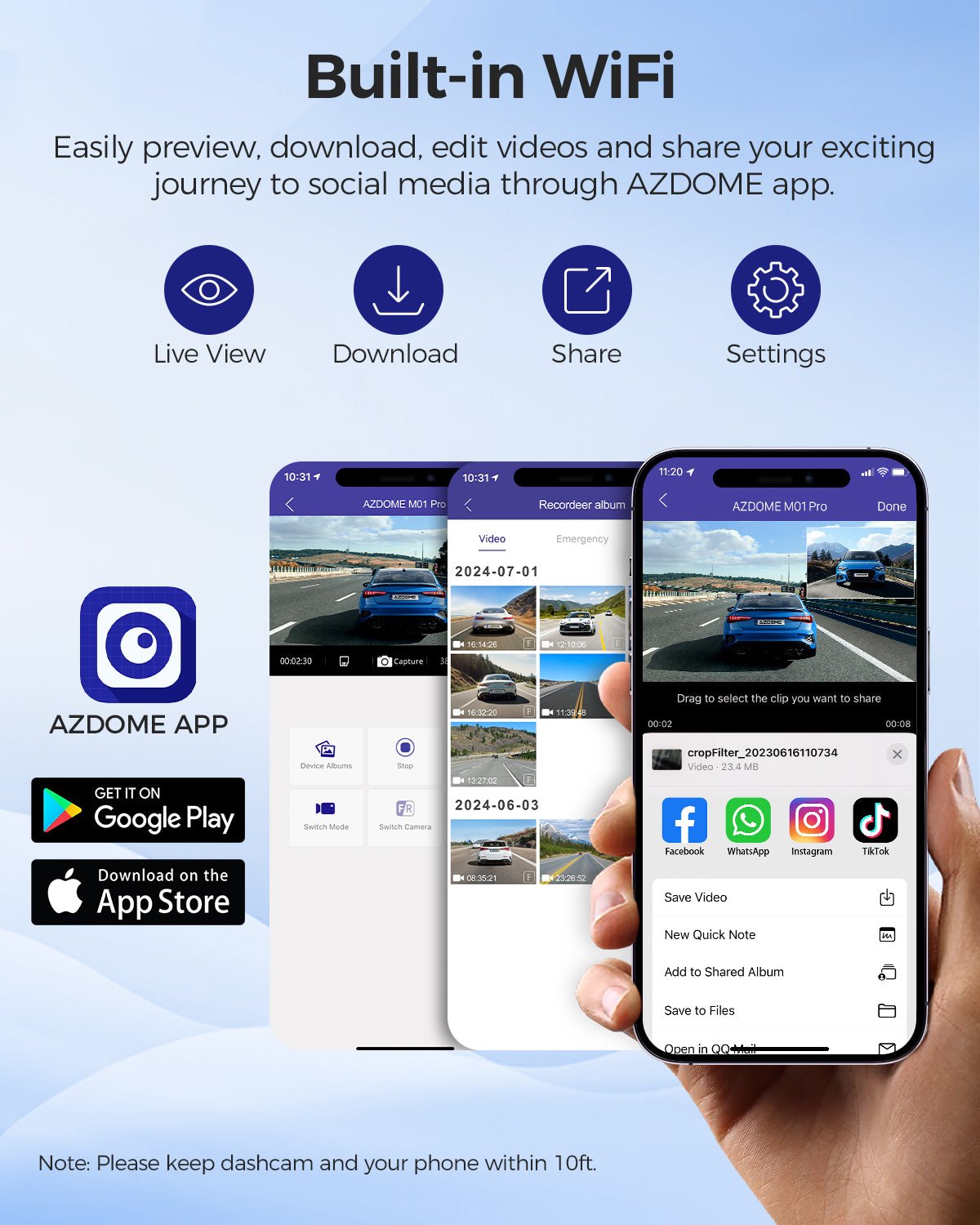

Wireless Access & App Integration
An integrated wireless module allows the dash cam to connect directly to the AZDOME smartphone application. This connection facilitates fast video file retrieval, playback, and settings configuration directly on the mobile device, eliminating the need to physically remove the MicroSD card to download evidence.

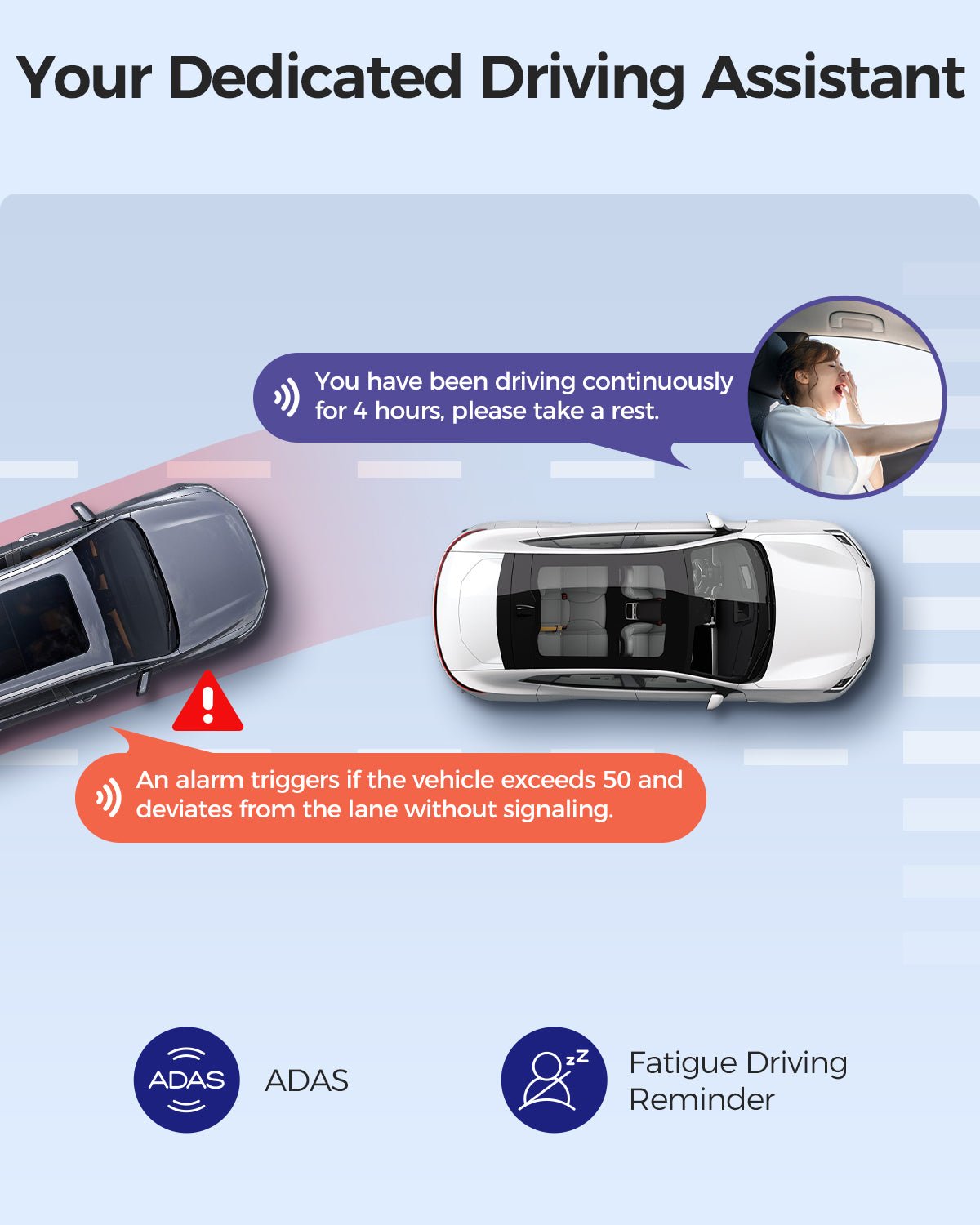

Advanced Driver Assistance Systems (ADAS)
The M01 Pro features integrated ADAS safety software that monitors real-time driving conditions. It processes optical visual cues to provide localized driver alerts, including Lane Departure Warnings to prevent drifting, and Fatigue Driving Reminders that prompt the driver to rest during extended driving sessions.
Advanced Protection & Security Modes
-

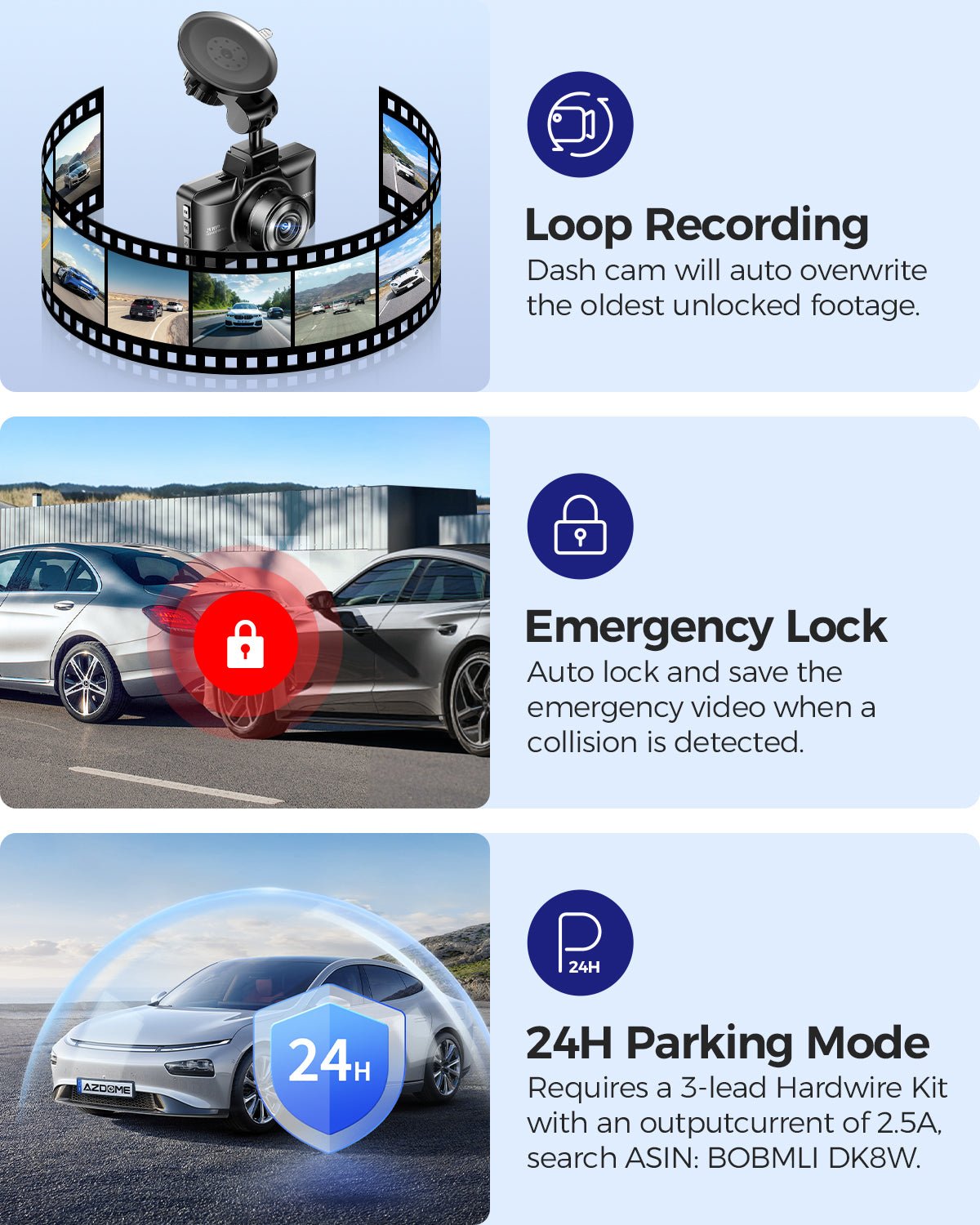

24-Hour Dual-Mode Parking Surveillance: When wired with an optional 3-wire Type-C hardwire kit (sold separately), the M01 Pro supports continuous stationary monitoring. Drivers can select between Collision Detection (G-sensor automatically wakes the camera and locks footage upon physical impact) and Time-Lapse Mode (records continuously at 1 frame per second to maximize storage efficiency).
-
G-Sensor Emergency Lock: Features a built-in gravity sensor (G-sensor) that automatically detects sudden decelerations or collisions, isolating and locking the current video file segment to prevent it from being overwritten during the loop cycle.
-
Supercapacitor Thermal Stability: Utilizing a high-durability supercapacitor instead of standard lithium batteries, the device safely operates across extreme vehicle cabin temperatures without risk of swelling, battery leaks, or thermal shutdown.
-

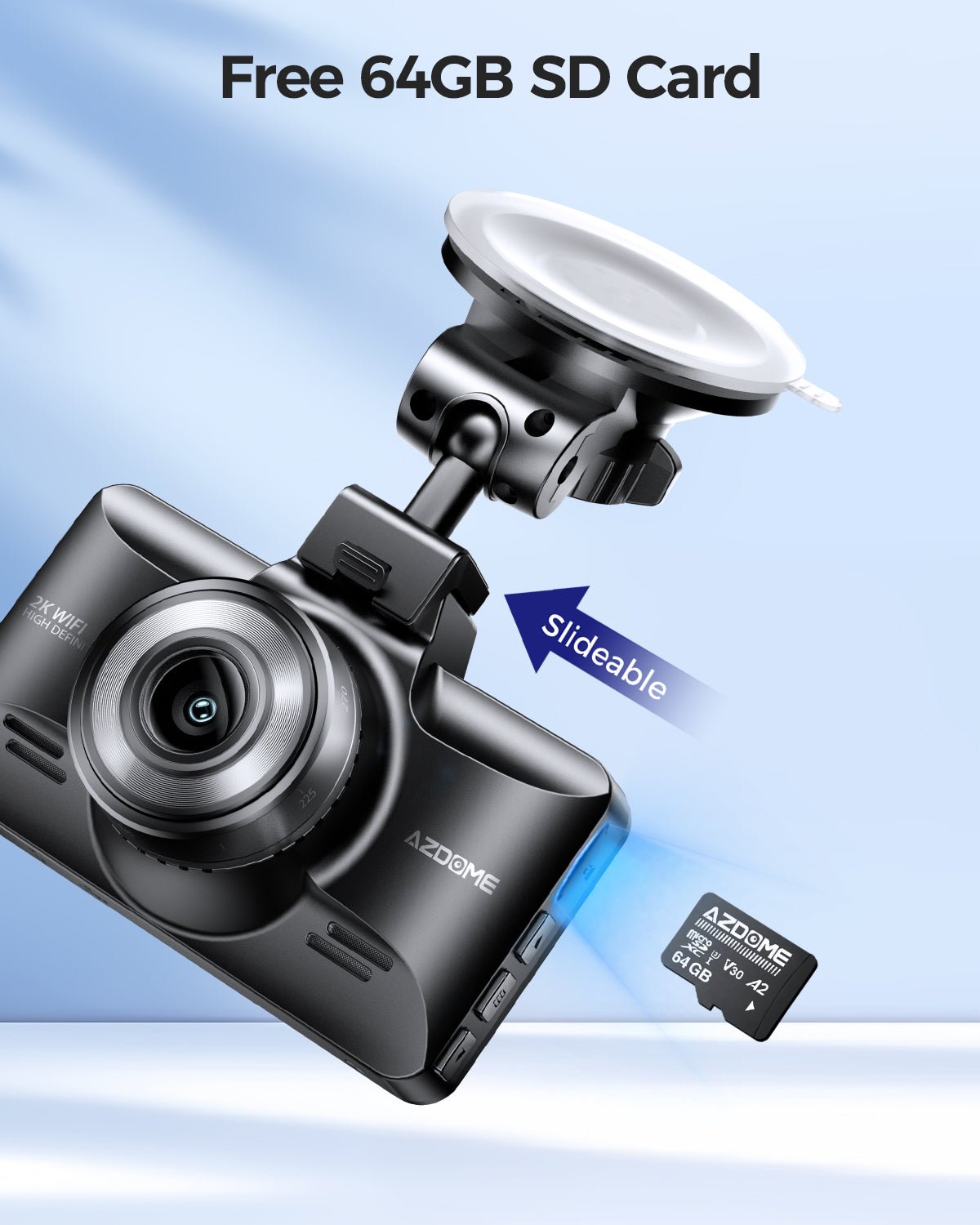

Flexible Installation Hardware: The standard package includes both a temporary suction cup mount and a low-profile 3M adhesive mount, allowing for a non-destructive, customizable windshield setup.
Target Applications
-
Daily Commuters: Captures clear front and rear video evidence of lane-cutting, rear-end collisions, and traffic violations.
-
Rideshare & TNC Operators: Offers robust exterior recording capabilities combined with GPS speed mapping to defend against false traffic citations or passenger liability claims.
-
Commercial Deliveries & Fleet Vehicles: Establishes speed and driving duration metrics via software tracking to support fleet safety compliance.

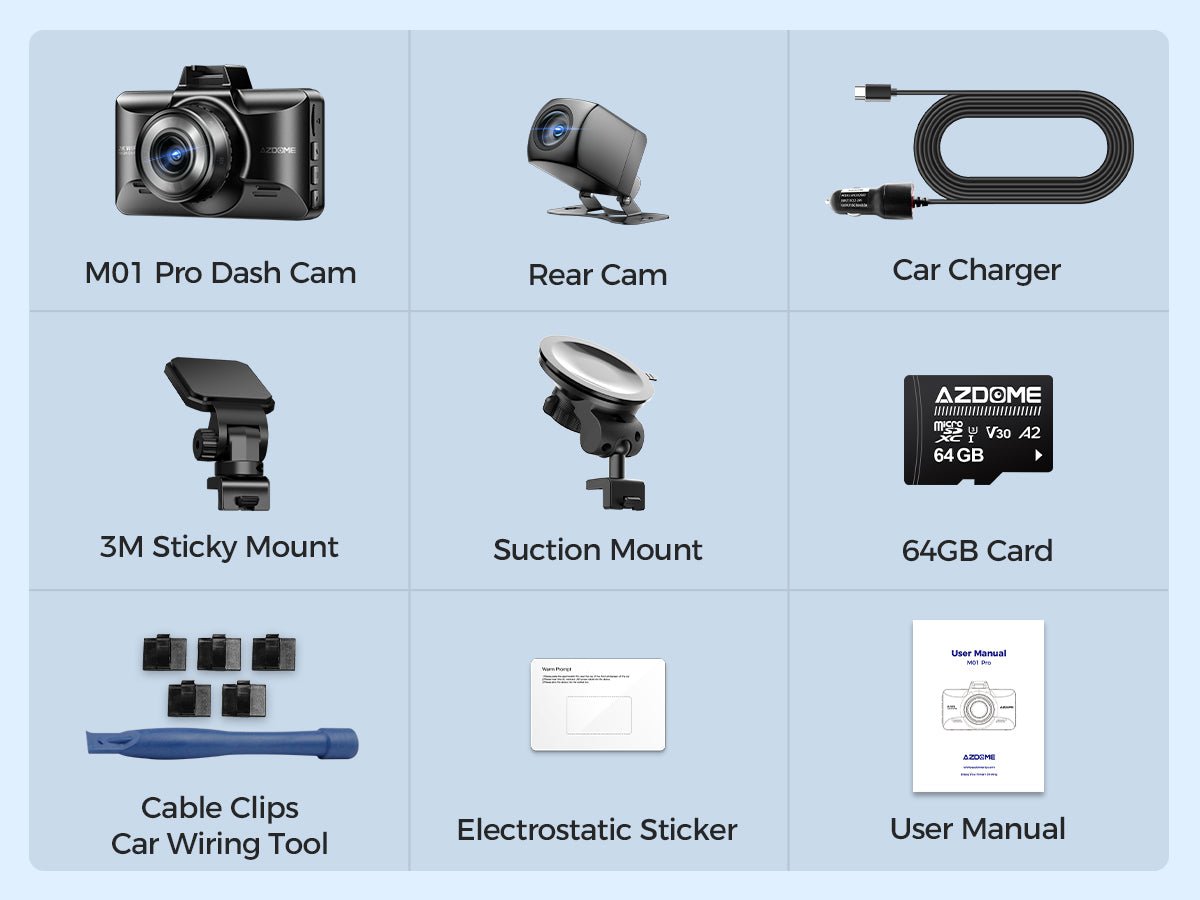

Package Contents
-
AZDOME M01 Pro 3K Dash Cam
-
IP68 Waterproof Rear Camera
-
64GB High-Endurance MicroSD Card
-
Car Power Charger & Type-C Connection Cable
-
Suction Cup Mount & 3M Adhesive Mount
-
Wiring Trim Tool & Adhesive Cable Clips
Frequently Asked Questions
Q1: What are the video resolution configurations for single and dual-channel recording on the M01 Pro?
A: When used as a front-only camera, the M01 Pro records in 3K Ultra HD (3200×1800P) resolution. When the rear camera is connected for dual-channel recording, the system automatically adjusts to record in 2K HD resolution on the front camera and 1080P Full HD resolution on the rear camera.
Q2: Does the AZDOME M01 Pro use a supercapacitor or a lithium battery?
A: The M01 Pro uses a heat-resistant supercapacitor power supply. Unlike traditional lithium-ion chemical batteries, supercapacitors can safely withstand extreme seasonal temperatures without risk of swelling, leaking, or overheating, extending the operational life of the dash cam.
Q3: How does the 24-hour parking mode protect my parked vehicle?
A: When connected to the vehicle’s fuse box using an AZDOME 3-wire hardwire kit, the M01 Pro active parking mode operates in two ways: Collision Detection, which wakes up and locks video files when an impact is felt, and Time-Lapse Mode, which records continuously at 1 frame per second to capture surrounding activity while saving card space.
Frequently Asked Questions
1. Does this dash cam work with iPhone and Android?
Yes, all AZDOME dash cams with WiFi connect easily to both iOS and Android devices via the app. You can view, download, and share videos instantly.
2. Do I need WiFi or internet to use the dash cam?
No. The dash cam records automatically without internet. WiFi is only needed if you want to connect your phone to view or download footage.
3. Does it record when the car is parked?
Yes, with parking mode enabled, the dash cam can monitor your car 24/7. It detects motion or impacts and records automatically.
Note: A hardwire kit may be required for continuous parking monitoring.
4. How long can the dash cam record?
Recording time depends on the memory card size. For example:
-
64GB = several hours of footage
-
128GB–256GB = extended recording time
Loop recording ensures old footage is automatically overwritten when storage is full.
5. Is a memory card included?
Some models include a memory card (e.g., 64GB or 128GB). Please check the product details. For best performance, we recommend using a high-speed microSD card.
6. Will it record at night?
Yes, AZDOME dash cams feature advanced night vision and HDR/WDR technology to capture clear footage even in low-light conditions.
7. Is installation difficult?
No, installation is simple and takes just a few minutes. Most dash cams mount to your windshield or rearview mirror and plug into your car’s power outlet.
8. What happens if there is an accident?
The built-in G-sensor automatically detects sudden impacts and locks the video to prevent it from being overwritten—ensuring important evidence is محفوظ.
9. Can I view footage on the dash cam screen?
Yes, models with a screen allow real-time viewing and playback directly on the device. You can also access videos via the mobile app.
10. Does it support voice control?
Yes, selected models support voice commands like:
-
“Lock Video”
-
“Take Photo”
-
“Turn on WiFi”
This allows hands-free control while driving.
11. What vehicles is this compatible with?
AZDOME dash cams are compatible with most vehicles including cars, SUVs, trucks, taxis, and rideshare vehicles.
12. Is there a warranty?
Yes, AZDOME products typically come with a warranty and customer support. Please check your product page for full warranty details.
